Polyester Webbing Industry

At a Glance

The Polyester Webbing Industry supplies the woven synthetic straps that underpin global cargo control, load restraint, lifting, and safety systems. Polyester is the dominant fiber in this segment because it combines high tensile strength with very low elongation (typically 3–7% at break), excellent UV and abrasion resistance, and minimal moisture absorption, making it the default choice over nylon and polypropylene for tie-down and lashing applications. Demand is driven by international freight growth, tightening cargo-securement regulation across road, rail, sea, and air, and the steady replacement cycle for ratchet straps, lashing assemblies, and slings in logistics, construction, and manufacturing supply chains.

Performance Data

Bulk buyers specifying webbing for cargo control must align material construction with recognized load-rating and safety standards. The following benchmarks define a compliant, professional-grade product:

• Working Load Limit (WLL): Standard cargo straps are rated at roughly 1/3 of breaking strength. A 2-inch strap commonly carries a WLL of 1,666–2,750 kg (3,670–6,000 lb) depending on weave and finish.
• Breaking Strength: Industrial polyester webbing delivers min. 5,000–12,000 kg (11,000–26,400 lb) breaking strength at 2-inch (50 mm) width; 4-inch (100 mm) heavy lashing webbing reaches >15,000 kg.
• Safety Factor: Cargo lashing systems require a minimum safety factor of 3:1; lifting-grade slings require 7:1 per EN and LOLER practice. Always confirm the application before rating.
• EN 12195-2: The European standard for web lashings specifies STF (Standard Tension Force), LC (Lashing Capacity), and mandatory labeling of WLL and elongation for all restraint webbing.
• DOT / FMCSA (49 CFR 393): North American cargo securement requires aggregate WLL to equal at least 50% of cargo weight, with each tie-down’s WLL clearly marked.
• ASTM & WSTDA: ASTM D6775 (breaking strength test method) and Web Sling & Tie Down Association recommended standards govern webbing test procedures and sling design in the U.S. market.
• Temperature Range: Polyester performs reliably from −40°C to +100°C (−40°F to +212°F), with strength retention above 90% across this band; it should not be used above 100°C continuous.
• Elongation & UV: Certified webbing holds ≤7% elongation at WLL and retains ≥80% tensile strength after 500+ hours of UV exposure, critical for outdoor and marine restraint.

Width	Typical Breaking Strength	Typical WLL (3:1)	Thickness
25 mm (1")	2,500–3,500 kg	800–1,150 kg	1.2–1.6 mm
50 mm (2")	5,000–12,000 kg	1,666–4,000 kg	1.6–2.2 mm
75 mm (3")	9,000–15,000 kg	3,000–5,000 kg	2.0–2.6 mm
100 mm (4")	12,000–20,000 kg	4,000–6,600 kg	2.4–3.0 mm

Recommended Solutions

Our product range is engineered to match specific load classes, wear environments, and fabrication needs across the cargo-control spectrum.

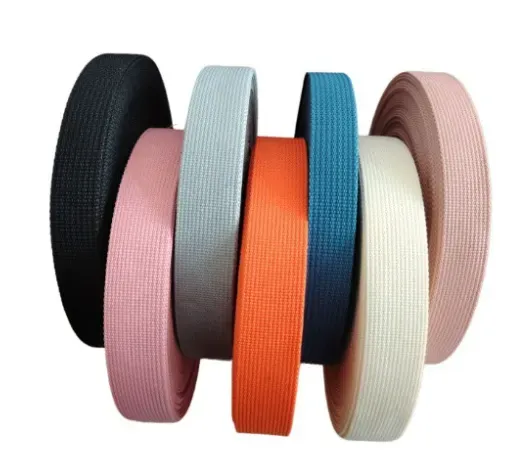

• General Purpose Woven Webbing is the versatile baseline for light-to-medium restraint, bundling, and equipment straps, offering balanced strength, smooth ratchet feed, and consistent dye lots for branded assemblies. It suits high-volume orders where cost efficiency and reliable everyday performance matter most.

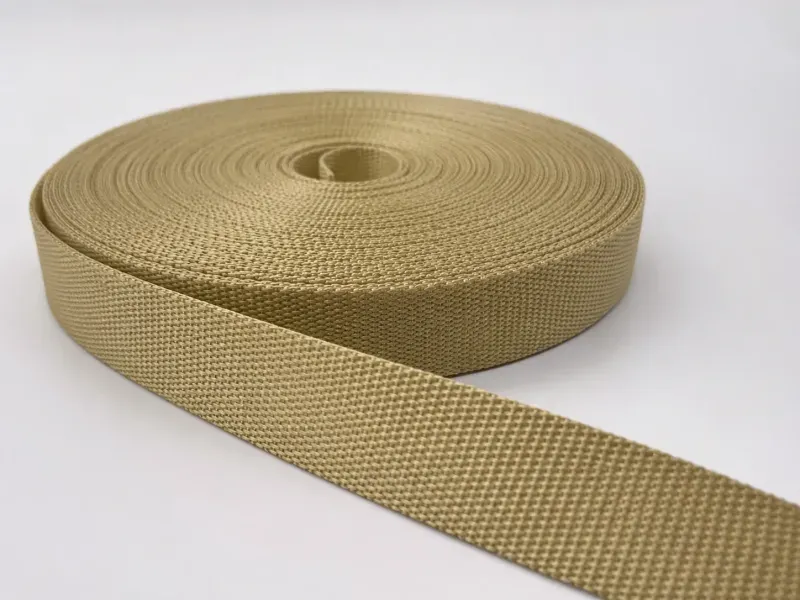

• High-Performance Industrial Webbing Roll targets demanding restraint and lifting-adjacent duty with dense, high-tenacity weaves that maximize breaking strength per millimeter of width and resist abrasion on sharp load edges. It is the go-to for fleet operators and fabricators building heavy-duty ratchet and lashing assemblies.
• The Heavy Duty Polyester Webbing Roll - 2 Inch Width is our flagship 50 mm format for standard cargo tie-downs, delivering the industry-preferred 2-inch profile with 5,000–12,000 kg breaking strength, low elongation, and abrasion-resistant edges tuned for continuous ratchet cycling.
• For engineered restraint, lifting, and safety-critical builds, our Polyester Webbing in high-tenacity grades supports Polyester Webbing for High-Strength Applications, where elevated safety factors, certified test data, and traceable batch records are mandatory.

Where It's Used

Polyester webbing serves as the load-bearing element across a wide range of restraint and safety systems. Common applications include:

• Road & fleet cargo securement: Ratchet tie-down straps and web lashings for flatbed, curtain-side, and box trailers, rated to DOT and EN 12195-2 for over-the-road transport of machinery, pallets, and drums.
• Container & intermodal lashing: High-LC lashing webbing for securing freight inside shipping containers and on rail cars, resisting vibration and shifting loads over long transit distances.
• Lifting slings & rigging: Flat and endless web slings for construction and industrial lifting, built on Polyester Webbing for High-Strength Applications with 7:1 safety factors and color-coded WLL identification.
• Marine & offshore restraint: UV- and saltwater-resistant straps for deck cargo, boat trailering, and dock equipment, leveraging polyester’s low moisture absorption and dimensional stability.
• Construction & scaffolding: Load binding, tool restraint, and temporary anchoring where abrasion resistance and consistent breaking strength are essential on rough job-site surfaces.
• OEM assemblies & safety gear: Feedstock for fall-protection lanyards, recovery straps, agricultural equipment, and custom-branded strap kits, drawing on General Purpose Woven Webbing for high-volume, cost-sensitive runs.

Sourcing & Bulk Orders

We manufacture to global wholesale and OEM specifications with full control over weave, width, color, print, and finishing. Our production is structured for bulk buyers, distributors, and strap fabricators who require certified, consistent, and traceable webbing at scale.

• MOQ: Standard minimum order is 3,000–5,000 meters per width/color for stock constructions; custom weaves and proprietary colors start at 10,000 meters. Sample rolls (50–100 m) are available for qualification and lab testing.
• Custom Widths: Available from 25 mm to 100 mm (1"–4") as standard, with tailored widths on request. The Heavy Duty Polyester Webbing Roll - 2 Inch Width is our most-ordered format for cargo tie-downs.
• Custom Lengths & Put-Up: Rolls supplied in 100 m, 200 m, or 500 m put-ups, with custom cut lengths and heat-sealed or overlocked ends for direct assembly lines.
• OEM & Private Label: In-line jacquard and screen printing for logos, load ratings, and batch codes; custom dye matching to Pantone; and made-to-spec breaking-strength targets under the High-Performance Industrial Webbing Roll platform.
• Certifications: ISO 9001 manufacturing, plus test reports aligned to EN 12195-2, DOT/FMCSA 49 CFR 393, ASTM D6775, and WSTDA standards. REACH and OEKO-TEX documentation available for regulated markets. Each batch ships with a certificate of conformity stating breaking strength, WLL, and elongation.
• Lead Time: 7–12 days for in-stock Polyester Webbing constructions; 20–30 days for custom weaves, colors, and printed OEM orders after sample approval.
• Export & Logistics: FOB, CIF, and EXW terms supported from major Chinese ports, with consolidated container loading, export packaging on pallets or in cartons, and full HS-code and commercial documentation for worldwide shipment.

Whether you are sourcing high-volume General Purpose Woven Webbing for everyday strap assemblies or engineered Polyester Webbing for High-Strength Applications for lifting and safety-critical restraint, our range delivers certified breaking strength, tight elongation tolerances, and export-ready reliability for global bulk buyers.
