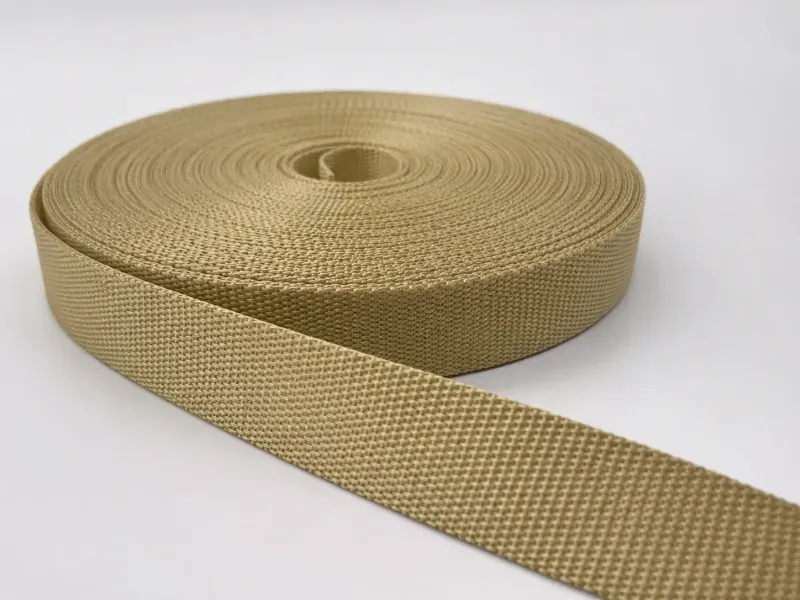

High-Performance Industrial Webbing Roll

At a Glance

The High-Performance Industrial Webbing Roll is a heavy-duty polyester webbing manufactured by TrustWebbing for the cargo control, load-securement, and lifting industries. Supplied in bulk continuous rolls, this webbing is the core raw material for fabricating ratchet straps, cam-buckle tie-downs, lashing straps, recovery straps, and lifting slings. It is produced on high-tension narrow-fabric looms with tightly controlled tolerances to ensure uniform width, thickness, and tensile performance across every roll.

Engineered from 100% high-tenacity polyester, the webbing combines high breaking strength, low elongation (under 7% at working load), and excellent resistance to UV degradation, abrasion, moisture, and most industrial chemicals. This makes it a reliable choice for both indoor and outdoor use where consistent, repeatable strength is critical. Each production lot is tension-tested and traceable, supporting downstream customers who must certify finished assemblies to EN 12195-2 and DOT standards.

Whether you are an OEM strap fabricator, a rigging distributor, or an industrial supply house, this webbing roll offers the balance of strength, durability, and cost-efficiency needed for high-volume production.

Performance Data

Built to Last

• Woven from 100% high-tenacity polyester yarn for high strength-to-weight ratio and minimal stretch.
• Tight twill/plain weave construction with 1.8 mm nominal thickness for durability and flexibility over buckles and hardware.
• Available in standard widths of 1 in (25 mm), 2 in (50 mm), 3 in (75 mm), and 4 in (100 mm) to match common ratchet and cam-buckle hardware.
• Breaking strength options ranging from 1,500 lbs (1") up to 12,000 lbs (4") depending on width and yarn denier.
• Heat-sealed or cut-to-length edges to prevent fraying and support automated assembly.
• UV-stabilized dye process rated for 500+ hours of accelerated weathering with minimal color fade.
• Consistent ±1 mm width tolerance and lot-to-lot tensile consistency verified by inline tension testing.

Where It's Used

• Ratchet tie-down straps and cam-buckle straps for flatbed, trailer, and truck cargo securement.
• Lashing and lifting slings for logistics, warehousing, and material handling.
• Recovery and tow straps for automotive, off-road, and agricultural equipment.
• Container and pallet restraint systems in freight and distribution centers.
• Safety harness components, load binders, and general-purpose industrial restraint.
• OEM raw material for strap and sling fabricators producing certified finished goods.

Sourcing & Bulk Orders

TrustWebbing supports full OEM and ODM customization for bulk buyers:

• MOQ: 3,000 yards (approx. 10 rolls) per width/color; lower trial quantities negotiable for first orders.
• Custom widths: 1"–4" (25–100 mm) and custom deniers to hit target breaking strengths.
• Colors: Full Pantone-matched dyeing, striped identification threads, and custom pigment lots.
• Branding: Woven or printed logos, part numbers, and WLL/rating labels directly on the webbing.
• Certifications: Manufactured to EN 12195-2 (European lashing standard) and DOT / FMCSA requirements, aligned with WSTDA-T1 recommendations; test certificates and material traceability provided per lot.
• Lead time: 15–25 days for standard stock widths; 25–35 days for fully custom color/width runs after sample approval.
• Packaging: Shrink-wrapped rolls on cardboard cores, palletized and export-ready; custom labeling available.
• Terms: FOB China (Ningbo/Shanghai) standard; EXW and CIF available. Sample rolls available prior to bulk PO.

All rolls ship with mill test reports documenting breaking strength, elongation, and dimensional tolerances, enabling fabricators to certify finished assemblies with confidence.
