Ratchet Straps Hardware Kit: Buckles, Hooks & Fittings

The Problem With Mismatched Components

Most ratchet strap failures we inspect trace back to hardware, not webbing. A worn double-action pawl, a hook with an opened throat gap, or an eyelet crimped for the wrong webbing width all lower the assembly's effective working load limit well below its printed rating.

• Buckle pawls that skip under load, common after repeated cycles past 3,333 lbs WLL
• Forged hooks with throat gaps that no longer seat flush against anchor points
• Eyelet end fittings sized for 2" webbing forced onto 3" strap, reducing pull strength

Compared to replacing a full ratchet strap assembly, rebuilding with matched hardware components typically restores rated capacity at a fraction of the material cost, since the webbing itself often has years of usable life left.

Core Components

A functional hardware kit is built around three matched parts, each sized to the same webbing width and load class:

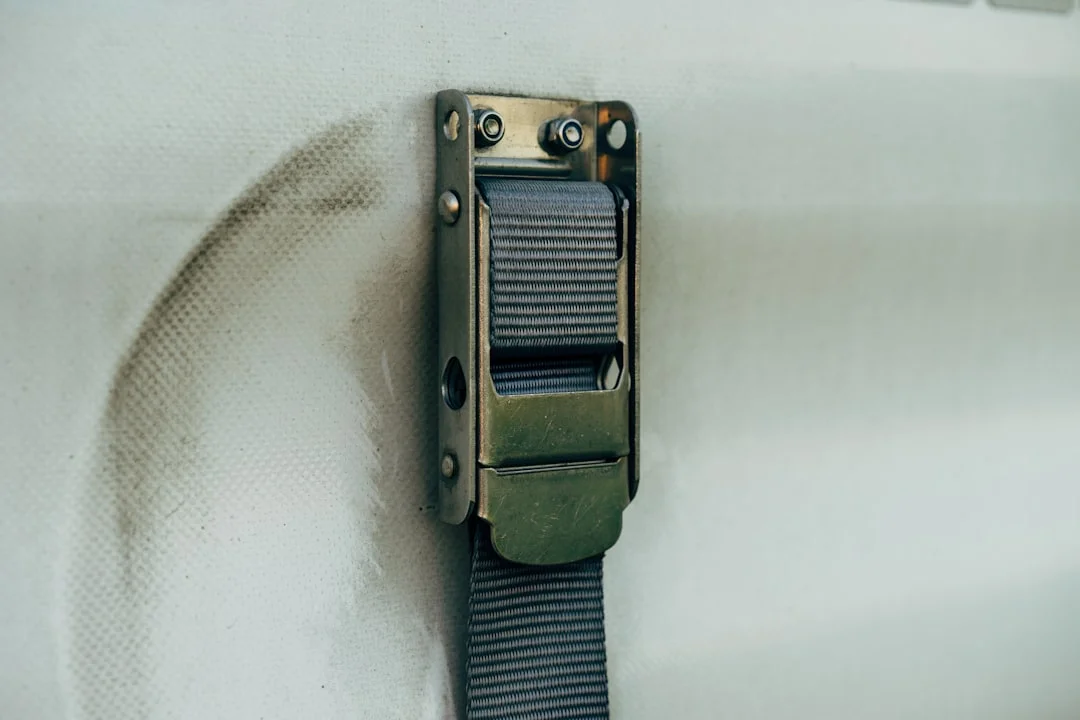

• Heavy Duty Ratchet Buckle Assembly - heat-treated carbon steel, double-action interchangeable pawl, sized for 1.5", 2", or 3" webbing
• Forged End Hooks (S/F/J/Hooks) - forged steel S-hook, flat hook, J-hook, or safety hook, zinc plated or yellow chromate finish, compatible with 1.5" to 3" webbing
• Steel Eyelet End Fittings - die-cast zinc alloy or steel, crimped or riveted, pull strength matched to webbing WLL

For heavier or chain-based tie-downs, an Industrial Steel Load Binder rated 10-25 ton with a 3:1 safety factor extends the same kit logic into lever-type binder systems. Rigging that needs a quick-connect point often adds Industrial Safety Carabiners rated to 22 kN on the major axis, CE / ANSI compliant.

Spec Comparison

Break strength on webbing-rated hardware ranges from 10,000 lbs to 20,000 lbs, roughly three times the working load limit, which is the standard safety margin we build every assembly to.

Practical Comparison

Fleet maintenance crews we work with rebuild straps in batches rather than one at a time, since a single worn buckle assembly is usually the only failed part on an otherwise serviceable strap.

• Replacing only the buckle assembly and hooks keeps the original webbing in service instead of discarding a strap with 1000D polyester still rated for 3,333-6,667 lbs WLL
• Standardizing on one hardware width (e.g. 2") across a fleet reduces the number of SKUs a maintenance shop needs to stock, compared to carrying full replacement straps in every length
• Matching hardware finish (zinc plated vs. yellow chromate) to the operating environment reduces premature corrosion versus using a mismatched finish across a kit

Our QC process checks pawl engagement, hook throat gap, and eyelet crimp pull strength on every batch before it ships to a fleet or rigging customer, whether the order is for a single kit or a bulk restock.

How to Choose

1. Measure your existing webbing width (1.5", 2", or 3") before ordering hardware, since buckle and hook sizing is width-specific, not universal

2. Match the WLL you need - most trucking and cargo securement work runs 3,333-6,667 lbs WLL, while chain-based rigging with an Industrial Steel Load Binder covers 10-25 ton

3. Choose finish for environment - zinc plated or yellow chromate for general Trucking & Logistics and Construction & Infrastructure work, 316 stainless for Marine & Shipping

4. Add connection hardware as needed - Industrial Safety Carabiners for quick-connect rigging, or Truck Bed Tie-Down Anchors for fixed mounting points

This hardware kit approach is used across Cargo Securement & Transportation and Trucking & Logistics operations serving customers across North America and Europe, and it applies equally to E-Track based systems where an E-Track Ratchet Strap Assembly needs a hook or buckle swap rather than a full replacement.
