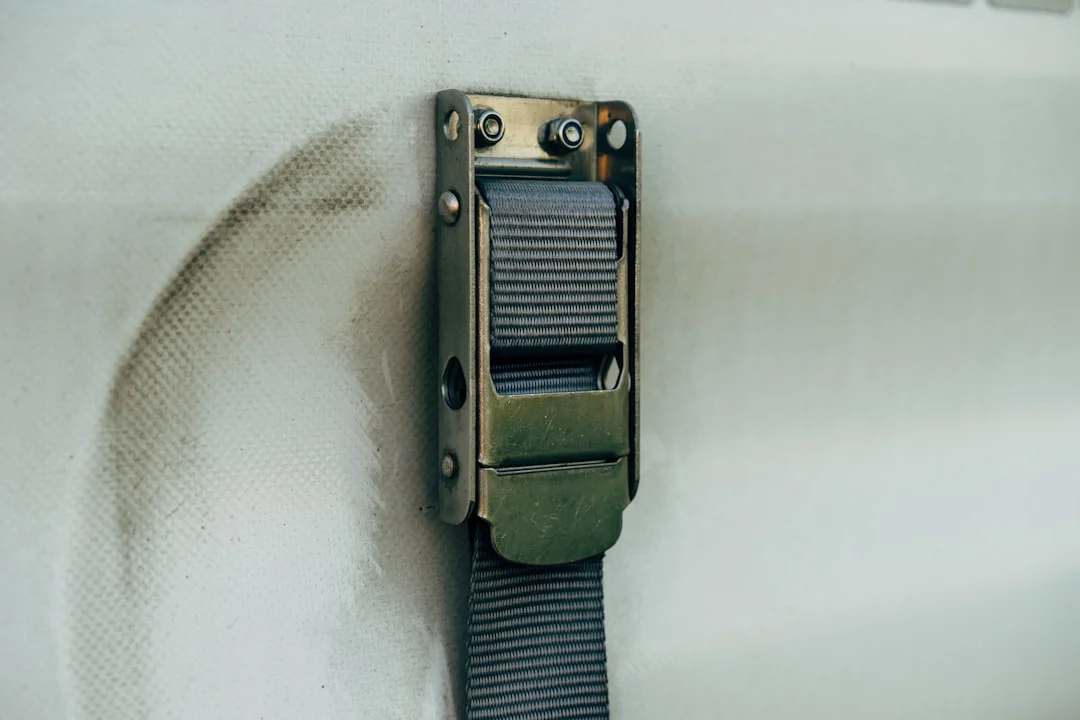

Finding the right heavy duty tie down buckle assembly is critical for any operation where cargo security cannot be compromised. Whether you're outfitting Ratchet Tie Down Straps for Trucking & Logistics or Construction & Infrastructure projects, the buckle is the mechanical heart of your securement system. A properly engineered ratchet buckle converts webbing tension into reliable load retention, and when it fails, the consequences extend far beyond a simple strap failure. Our Heavy Duty Ratchet Buckle Assembly components are manufactured from heat-treated carbon steel with double-action pawl mechanisms, designed to perform under the most demanding Cargo Securement & Transportation conditions as of 2026.
Why the Buckle Assembly Is the Critical Component
Every cargo securement system relies on the buckle to maintain tension under dynamic loads. Compared to cam buckle assemblies used on
Standard Utility & Tarp Straps
, ratchet buckles generate significantly higher tension — typically achieving
3 to 5 times
the clamping force. This is why
Standard Heavy Duty Ratchet Strap
configurations with WLL ratings from
3,333 lbs to 6,667 lbs
require precision-machined ratchet mechanisms rather than simple cam locks.
In
Lifting & Rigging
applications, the difference between a properly rated buckle and an underspecified one can mean the gap between a secure load and a catastrophic failure. We prep bulk ratchet buckle assemblies every week for strap manufacturers who need consistent, reliable hardware that matches their webbing specifications.
Heavy Duty Ratchet Buckle Assembly Specifications
Our
Heavy Duty Ratchet Buckle Assembly
is manufactured from heat-treated carbon steel with finishes available in yellow chromate, blue zinc, or standard zinc plating. The assembly is designed for webbing widths of
1.5 inches, 2 inches, and 3 inches
, covering the most common industrial strap configurations.
Key Specifications
- Material: Heat-Treated Carbon Steel
- Finish Options: Yellow Chromate / Blue Zinc / Zinc Plated
- Webbing Width Compatibility: 1.5", 2", 3"
- Pawl Mechanism: Double-Action / Interchangeable
- Operating Temperature: -40°F to 250°F (standard)
- Surface Hardness:
HRC 45-50
(heat-treated)
Buckle Width Comparison
| Specification | 1.5" Buckle | 2" Buckle | 3" Buckle |
| Webbing Width | 1.5 inch | 2 inch | 3 inch |
| Pawl Mechanism | Double-Action | Double-Action | Double-Action |
| Finish Options | Yellow/Zinc/Blue | Yellow/Zinc/Blue | Yellow/Zinc/Blue |
| Material | Heat-Treated Carbon Steel | Heat-Treated Carbon Steel | Heat-Treated Carbon Steel |
The double-action pawl mechanism ensures the ratchet engages on both the push and pull strokes, reducing cycle time by approximately
40%
compared to single-action designs. This translates directly into faster load securement on the dock and in the field.
Material & Construction Standards
The
Heavy Duty Ratchet Buckle Assembly
components undergo heat treatment to achieve the tensile properties required for repeated high-tension cycling. Unlike
which rely on crimped or riveted attachment, ratchet buckles must withstand torsional and shear forces that are orders of magnitude higher.
For
316 Marine Grade Ratchet Strap
applications, we offer corrosion-resistant hardware options. While our standard buckle assemblies use carbon steel with protective plating, marine environments demand the
316 stainless steel
construction found in our
line — providing saltwater resistance that standard zinc plating cannot match.
All buckle assemblies are compatible with our
High-Performance Industrial Webbing Roll
in 1000D high-tensile polyester, and our
Forged End Hooks (S/F/J/Hooks)
for complete strap configurations.
Applications Across Industries
Our buckle assemblies serve a broad range of
Cargo Securement & Transportation
applications. In
Trucking & Logistics
, the
E-Track Ratchet Strap Assembly
with its
360° swivel
and
3,333 lbs drag WLL
relies on the same ratchet buckle technology. For
Construction & Infrastructure
projects, our buckles are integrated into
Retractable Ratchet Strap System
configurations ranging from
12 ft to 40 ft
lengths.
Compared to
systems rated for
10 to 25 ton
capacities, ratchet buckle assemblies provide a more user-friendly alternative for loads under
6,667 lbs
— requiring less physical force and offering more precise tension control.
For heavier
Lifting & Rigging
applications, our
and
with WLL up to
40,000 lbs
represent the appropriate product category.
How to Select the Right Buckle Assembly
Selecting the correct
Heavy Duty Ratchet Buckle Assembly
requires matching three key parameters: webbing width, working load limit, and environmental conditions.
Selection Checklist
- Webbing width: Match the buckle to your webbing — our
is available from
0.5 inch to 3 inch
, but our ratchet buckles are specifically engineered for
1.5 inch, 2 inch, and 3 inch
widths
- Working load limit: Ensure your buckle rating exceeds your intended load. A
2-inch
buckle on
Standard Heavy Duty Ratchet Strap
handles up to
6,667 lbs WLL
with a
10,000 to 20,000 lbs
break strength
- Environmental conditions: For outdoor or marine exposure, specify zinc-plated or consider our
316 Marine Grade Ratchet Strap
with
316 stainless steel
hardware
- Pawl configuration: Double-action pawls are standard for efficiency; interchangeable pawl options allow field conversion
Our
with
22 kN WLL
on the major axis complement our buckle assemblies for complete securement solutions.
Frequently Asked Questions
What is the difference between single-action and double-action ratchet buckles?
Single-action ratchet buckles engage the pawl on only one stroke direction, requiring the operator to lift and re-engage the pawl after each pull. Double-action ratchet buckles, like those in our Heavy Duty Ratchet Buckle Assembly, engage on both push and pull strokes — reducing cycle time by approximately 40% and allowing faster tensioning. For high-volume cargo securement operations, double-action mechanisms are the industry standard as of 2026.
How do I match buckle assembly width to webbing specifications?
The buckle webbing slot must match your strap width precisely. Our Heavy Duty Ratchet Buckle Assembly is engineered for 1.5-inch, 2-inch, and 3-inch webbing. Using a buckle that is too narrow will cause webbing binding and premature wear; one that is too wide will allow lateral slippage under load. We recommend measuring your webbing width with calipers and selecting the corresponding buckle size. For General Purpose Woven Webbing widths outside this range (0.5" to 3"), contact us for compatibility guidance.
What safety factor applies to heavy duty ratchet buckle assemblies?
Our Standard Heavy Duty Ratchet Strap configurations with 2-inch webbing carry a WLL of 6,667 lbs with a break strength of 10,000 to 20,000 lbs, yielding a safety factor of approximately 3:1 to 5:1. This aligns with WSTDA industry standards for cargo tie-down applications. The buckle assembly itself is rated to handle the full break strength of the webbing it is paired with — we never underspecify hardware relative to webbing capacity.
Can ratchet buckle assemblies be used in marine or corrosive environments?
Standard Heavy Duty Ratchet Buckle Assembly components use heat-treated carbon steel with zinc or chromate plating, providing good resistance to general outdoor exposure. However, for marine and saltwater environments, we recommend our
316 Marine Grade Ratchet Strap
which uses
316 stainless steel
hardware. Unlike 304 stainless or zinc-plated carbon steel, 316-grade stainless contains molybdenum for superior chloride corrosion resistance — making it saltwater safe for
Marine & Shipping
applications.
What is the relationship between WLL and break strength in ratchet buckles?
Working Load Limit (WLL) is the maximum load the assembly should be subjected to during normal use. Break strength is the force required to physically fail the component. For our
Standard Heavy Duty Ratchet Strap
, the 2-inch configuration has a WLL of 6,667 lbs and a break strength of 10,000 to 20,000 lbs. The
line uses a
3:1 safety factor
as its standard. We design our buckle assemblies so that the hardware break strength exceeds the webbing break strength, ensuring the webbing fails before the hardware under extreme overload conditions.
