Automotive Transportation

# Automotive Transportation Cargo Control Solutions

At a Glance

Automotive Transportation is the segment of the logistics industry dedicated to securing, restraining, and protecting vehicles, machinery, and palletized freight during road, rail, and intermodal transit. Global demand is driven by the continued expansion of e-commerce distribution networks, cross-border trucking corridors, and just-in-time supply chains that require reliable cargo securement at every leg of the journey. As freight volumes rise and regulatory enforcement of load restraint tightens across North America, Europe, and Asia-Pacific, wholesale buyers increasingly source certified, high-tensile webbing systems that reduce cargo damage claims and keep fleets compliant.

Performance Data

Professional buyers in Cargo Securement & Transportation evaluate tie-down hardware against strict mechanical and regulatory benchmarks. The following specifications represent the baseline expectations for heavy-duty webbing assemblies used in Trucking & Logistics operations:

• Working Load Limit (WLL): Standard 2-inch (50 mm) assemblies provide a WLL of 1,666 lbs (approx. 750 kg) per strap, with heavy-duty variants reaching 3,335 lbs (1,500 kg) depending on hardware grade.
• Breaking Strength (Minimum Break Force): Industry-grade polyester webbing delivers a break strength of 5,000 lbs (approx. 2,268 kg) for standard assemblies and up to 10,000 lbs (4,536 kg) for reinforced configurations.
• Safety Factor: A minimum 3:1 safety factor is required under U.S. DOT standards, while EN 12195-2 specifies verification of the Lashing Capacity (LC) with a documented ratio between break force and rated capacity.
• Governing Standards: Products should conform to EN 12195-2 (European lashing/web strap standard), DOT / FMCSA 49 CFR 393 (North American cargo securement rules), and WSTDA / ASTM webbing test protocols for tensile and abrasion performance.
• Temperature Range: Polyester webbing maintains rated performance across an operating range of approximately -40°C to +100°C (-40°F to +212°F), resisting UV degradation and moisture-related elongation.
• Elongation: Quality polyester webbing exhibits less than 7% elongation at rated Lashing Capacity, ensuring loads remain tensioned throughout transit vibration cycles.
• Webbing Width & Weave Density: Common widths are 25 mm, 35 mm, 50 mm, and 75 mm, with weave density and stitch patterns engineered to match the rated WLL of each assembly.
• Hardware Grade: Ratchet handles and end fittings are typically forged or stamped from carbon steel with zinc plating (5–15 microns) or galvanization for corrosion resistance in outdoor fleet use.

The table below summarizes representative specifications for a standard 50 mm heavy-duty assembly:

Spec	Value
Webbing width	**50 mm (2 in)**
Working Load Limit (WLL)	**1,666 lbs / 750 kg**
Minimum Break Strength	**5,000 lbs / 2,268 kg**
Safety factor	**3:1**
Elongation at LC	**< 7%**
Operating temperature	**-40°C to +100°C**
Standard length	**8.5 m / 27 ft (adjustable)**

Recommended Solutions

For fleet operators and distributors sourcing at volume, two core product families cover the majority of over-the-road securement needs.

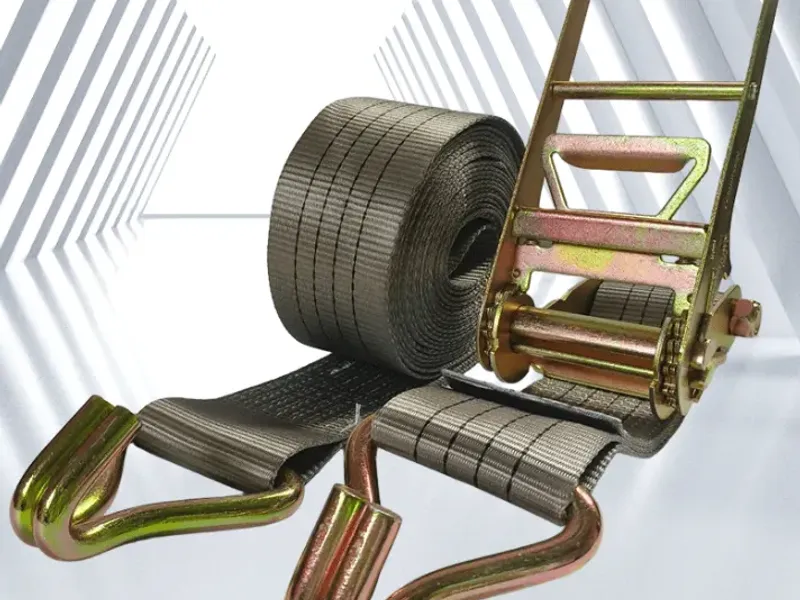

Ratchet Straps are the workhorse category for general cargo restraint, offering high tensioning force and repeatable, controlled release through a mechanical ratchet handle. Within this category, the Standard Heavy Duty Ratchet Strap is engineered for demanding daily use, pairing high-tenacity polyester webbing with a forged ratchet mechanism to deliver dependable clamping force across flatbeds, box trucks, and enclosed trailers.

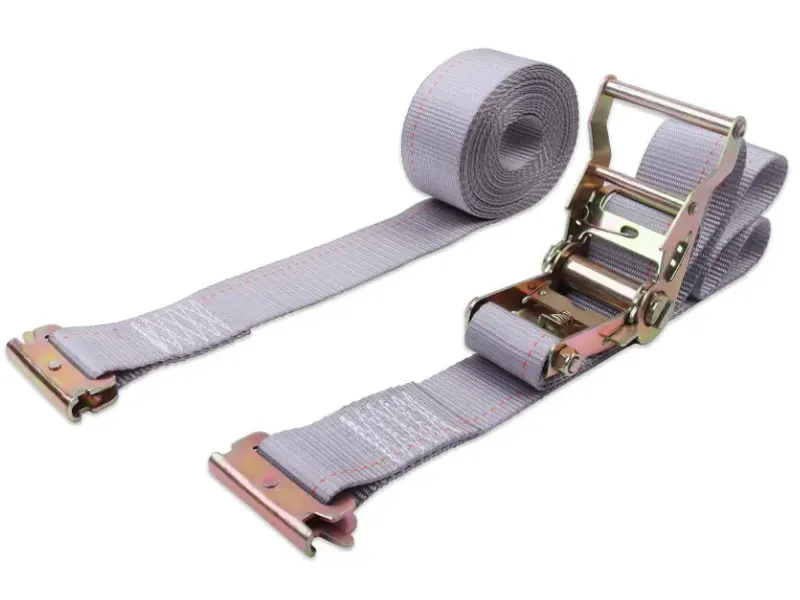

E-Track Straps are purpose-built for vehicles and containers fitted with E-Track rail systems, enabling rapid, tool-free anchoring at any point along the track. The E-Track Ratchet Strap Assembly integrates spring-loaded E-fittings with a heavy-duty ratchet, allowing operators to secure palletized freight, appliances, and irregular loads quickly while maintaining full rated Lashing Capacity. Together, Ratchet Straps and E-Track Straps give buyers a complete restraint portfolio for both open-deck and interior load configurations.

Where It's Used

Certified webbing assemblies from these categories serve a broad range of Automotive Transportation scenarios. Typical deployment contexts include:

• Trucking & Logistics fleets securing palletized and boxed freight on flatbed, curtain-side, and dry-van trailers during long-haul and regional distribution runs.
• Cargo Securement & Transportation of heavy machinery, industrial equipment, and construction materials that require high-WLL lashing to meet DOT and EN 12195-2 tie-down calculations.
• Vehicle and powersports transport, where wheel straps and axle tie-downs restrain cars, motorcycles, ATVs, and equipment on car carriers and enclosed haulers.
• Warehouse and last-mile delivery operations using the E-Track Ratchet Strap Assembly to anchor loads inside box trucks and containers fitted with E-Track rail, preventing shifting during frequent stop-and-go routes.
• Intermodal and containerized freight, where the Standard Heavy Duty Ratchet Strap secures blocking, bracing, and stacked pallets against the dynamic forces of rail, sea, and road transfer.
• Agricultural and bulk material hauling, restraining bagged goods, drums, and equipment exposed to outdoor conditions across the full -40°C to +100°C temperature range.

Sourcing & Bulk Orders

TrustWebbing supports global wholesale and bulk buyers with flexible, factory-direct manufacturing tailored to fleet, distributor, and OEM requirements.

• Minimum Order Quantity (MOQ): Standard MOQ starts at 500 pcs per configuration, with tiered pricing for orders of 1,000, 5,000, and 10,000+ units. Sample orders are available for quality validation prior to bulk commitment.
• Custom Lengths & Widths: Webbing is produced in 25 mm, 35 mm, 50 mm, and 75 mm widths, with assembly lengths cut to specification from 1 m to 15 m to match trailer and E-Track layouts.
• Custom WLL & Hardware: Working Load Limits and break strengths are configurable from 750 kg to 5,000 kg by adjusting webbing grade, stitch pattern, and end-fitting selection (flat hooks, S-hooks, wire hooks, snap hooks, D-rings, and E-fittings).
• OEM & Private Label: Full OEM service includes custom webbing colors, printed logos and branding, custom labeling, retail-ready packaging, and barcoded cartons for distributor resale.
• Certifications: Products are manufactured to EN 12195-2, DOT / FMCSA 49 CFR 393, and WSTDA / ASTM requirements, with GS, TÜV, and ISO 9001 quality documentation available on request. Break-force test certificates and Lashing Capacity labeling accompany certified assemblies.
• Lead Time: Sample lead time is 7–10 days; bulk production typically ships within 20–35 days of order confirmation, depending on volume and customization complexity.
• Export & Logistics: Factory-direct export is offered under FOB, CIF, and EXW terms, with consolidated container loading (20 ft / 40 ft / 40 HQ), export-grade packaging, and full customs documentation for shipments to North America, Europe, the Middle East, and Southeast Asia.

Whether standardizing a fleet on the Standard Heavy Duty Ratchet Strap, outfitting box trucks with the E-Track Ratchet Strap Assembly, or building a mixed inventory of Ratchet Straps and E-Track Straps for resale, TrustWebbing delivers certified performance, transparent specifications, and scalable wholesale terms for the global Automotive Transportation market.
