Oil, Gas & Energy

At a Glance

The Oil, Gas & Energy application covers the securement of drilling equipment, pipeline segments, valves, wellhead assemblies, generator sets, transformers, and modular process skids across upstream, midstream, and downstream operations. In this sector, cargo control and tie-down are not optional conveniences—loads are frequently high-mass, high-value, and hazardous, meaning a single restraint failure during road, rail, or offshore transit can trigger equipment loss, environmental spill, or fatality. Correctly rated ratchet straps, load binders, and forged hardware transform an unpredictable transport risk into a documented, engineered, and repeatable securement system that satisfies auditors, insurers, and site HSE teams.

Performance Data

Energy-sector securement demands verifiable ratings and full traceability. Specifications must be printed on the label, matched to a test certificate, and traceable to a production batch.

• Working Load Limit (WLL): Standard duty 1,500–2,500 kg, heavy duty 5,000 kg per assembly, with a system-level lashing capacity (LC) selected against total cargo mass plus dynamic transit factors.
• Minimum Breaking Strength (MBS): Webbing rated from 4,000 kg up to 12,000 kg+, with polyester yarn engineered for low elongation (≤7% at rated load) to prevent load shift on long-haul routes.
• Safety Factor: Compliant assemblies maintain a 2:1 to 3:1 ratio of breaking strength to WLL; a 3:1 factor is recommended for critical, high-value, or offshore-bound energy cargo.
• EN 12195-2: European lashing standard defining STF (standard tension force, typically ≥300–500 daN), LC marking, and labeling for restraint straps used in oilfield logistics.
• DOT / FMCSA §393.100–393.136: North American cargo securement rules requiring aggregate WLL of all tie-downs to be ≥50% of cargo weight, with minimum tie-down counts scaled to article length and mass.
• ASTM & WSTDA: Web sling and tie-down design references (e.g., WSTDA-T-1) governing webbing construction, abrasion resistance, and hardware integration.
• Temperature Range: Polyester webbing rated for continuous service between −40°C and +100°C, suitable for Arctic pipeline corridors through desert and equatorial gas facilities.
• Hardware Compliance: Forged, not cast, end fittings with a documented 2:1 minimum design factor, proof-tested and stamped with WLL for full chain-of-custody traceability.

Recommended Solutions

Our energy-sector securement systems are built from field-proven components engineered to work as a matched, load-rated assembly.

Ratchet Straps — Our core Ratchet Straps deliver the primary restraint force for pipe joints, skids, and equipment crates, using high-tenacity polyester webbing with low elongation to hold tension across long, vibration-heavy transit legs.

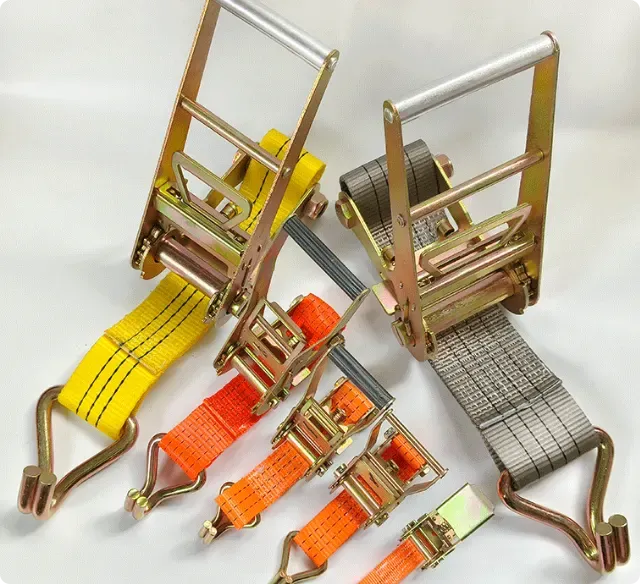

Heavy Duty Ratchet Buckle Assembly — The Heavy Duty Ratchet Buckle Assembly provides the mechanical tensioning heart of each strap, with a wide-handle, high-leverage ratchet mechanism engineered for repeatable tensioning and secure locking under dynamic road and offshore loads.

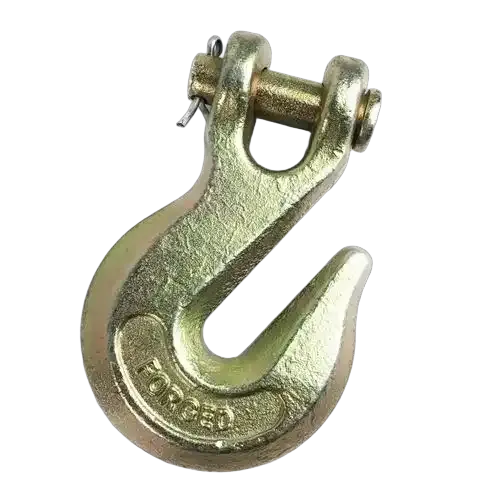

Forged End Hooks (S/F/J/Hooks) — Our Forged End Hooks (S/F/J/Hooks) connect the assembly to anchor points on trailers, skids, and containers; drop-forged construction resists opening under shock loading and outperforms cast alternatives in corrosive, saline energy environments.

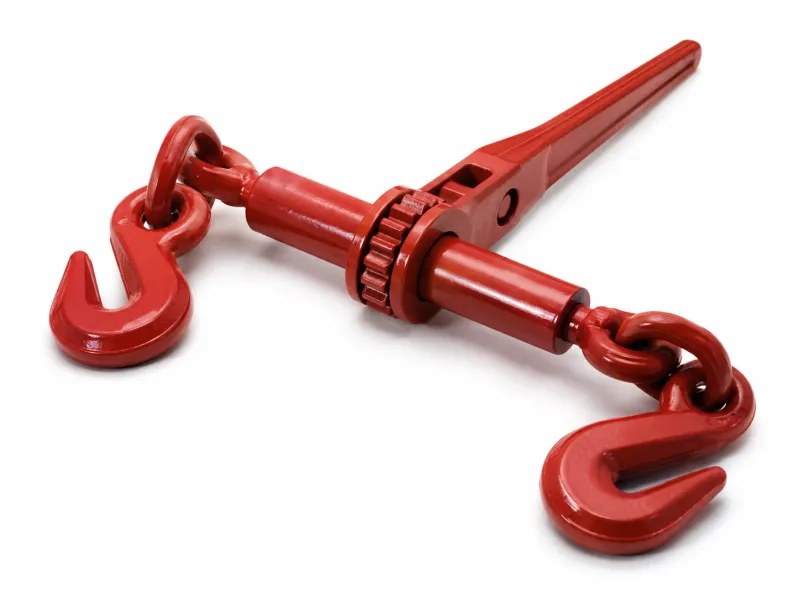

Industrial Steel Load Binder — For chain-based securement of the heaviest wellhead, valve, and structural steel loads, the Industrial Steel Load Binder offers ratchet-action binding with a high WLL and controlled tensioning, complementing webbing systems where steel-to-steel restraint is mandated.

Industrial Webbing & Hardware — All components are supported by our broader Industrial Webbing & Hardware range, allowing buyers to standardize on one traceable supply chain for webbing, buckles, hooks, binders, and anchor fittings.

Component	WLL	Break Strength	Key Spec
Ratchet Straps (standard)	2,500 kg	5,000 kg	Polyester, ≤7% elongation
Heavy Duty Ratchet Buckle Assembly	5,000 kg	10,000 kg+	Wide-handle, zinc/galv finish
Forged End Hooks (S/F/J/Hooks)	2,000–5,000 kg	2:1 design factor	Drop-forged, WLL stamped
Industrial Steel Load Binder	5,450 kg	12,000 kg+	Ratchet-action, alloy steel

Where It's Used

Energy logistics span extreme distances, terrains, and cargo profiles. Typical securement scenarios include:

• Drill pipe, casing & tubular bundles — restraining stacked steel pipe on flatbeds using multiple Ratchet Straps with corner protection to prevent point-load abrasion and roll.
• Wellhead assemblies, valves & BOP stacks — chain-and-Industrial Steel Load Binder securement for compact, high-mass steel components requiring rigid, non-elastic restraint.
• Modular process skids & compressor packages — combined webbing and forged-hook restraint of oversized, high-center-of-gravity units on lowboys and multi-axle trailers.
• Transformers, generators & switchgear — securing power-generation equipment for substation and renewable-energy site delivery, where balanced tie-down geometry is critical.
• Pipeline segments & coated pipe — non-marring webbing restraint that protects factory coatings while meeting DOT aggregate-WLL minimums over long haul routes.
• Offshore & port-to-platform transfers — corrosion-resistant forged hardware and rated webbing for supply-boat deck cargo and container-lashed spares in saline environments.

These use cases directly serve the Logistics & Transportation and Construction & Infrastructure industries, where energy project cargo is routinely staged, moved, and installed by the same securement supply chain.

Sourcing & Bulk Orders

TrustWebbing manufactures to global wholesale and OEM requirements, with securement systems configured to your fleet, cargo profile, and regional compliance regime.

Minimum Order Quantity (MOQ):

• Standard catalog straps and binders: 500 pieces per SKU.
• Fully custom OEM configurations: 1,000 pieces per specification.
• Sample orders and pre-production validation batches available on request.

Custom Lengths & Widths:

• Webbing widths: 25 mm, 35 mm, 50 mm, 75 mm, and 100 mm.
• Strap lengths: 1 m to 15 m+, cut and sewn to your specified fixed and free-end dimensions.
• Configurable end fittings across the full Forged End Hooks (S/F/J/Hooks) range, plus flat hooks, D-rings, and delta fittings.

OEM & Private Label:

• Custom webbing colors and woven-in identification lines for brand and batch tracking.
• Printed or heat-transfer WLL/LC labels in your language and regulatory format.
• Private-label packaging, barcoding, and custom Heavy Duty Ratchet Buckle Assembly handle branding.

Certifications & Testing:

• Manufacturing under ISO 9001 quality management.
• Product conformity to EN 12195-2, DOT/FMCSA, and ASTM/WSTDA references.
• Batch-level proof-test and MBS certificates supplied with every shipment for full traceability.
• Third-party inspection (SGS/BV) accepted and coordinated on request.

Wholesale Parameter	Specification
Standard MOQ	500 pcs / SKU
OEM MOQ	1,000 pcs / spec
Lead Time (standard)	15–25 days
Lead Time (custom OEM)	30–45 days
Export Terms	FOB, CIF, EXW
Main Ports	Ningbo, Shanghai, Shenzhen

Lead Time & Export:

• Standard production: 15–25 days; large custom OEM runs: 30–45 days depending on volume and hardware finishing.
• Export documentation including certificates of origin, test reports, and MSDS provided.
• Worldwide shipping via sea freight (FCL/LCL) with consolidation options for mixed Industrial Webbing & Hardware orders.
• Support for regional compliance labeling across North American, European, Middle Eastern, and Asia-Pacific energy markets.

Bulk buyers serving the Oil, Gas & Energy sector benefit from a single-source relationship covering Ratchet Straps, load binders, and forged hardware—engineered, certified, and delivered to keep high-value energy cargo secured, compliant, and audit-ready across every leg of transit.
