Construction & Infrastructure

At a Glance

Cargo control and tie-down in the Construction & Infrastructure sector covers the securing, restraining, and lifting of heavy loads—steel beams, precast concrete panels, rebar bundles, formwork, pipe, and machinery—during transport, hoisting, and on-site staging. Because construction payloads are dense, irregular, and frequently moved between trucks, cranes, and storage yards, a single point of restraint failure can cause load shift, dropped-load incidents, equipment damage, and serious injury. Reliable tie-down and lifting hardware is therefore not a commodity purchase but a compliance-driven safety system, where webbing strength, hardware rating, and documented certification directly determine whether a load can be legally and safely moved.

Performance Data

Bulk buyers specifying cargo control equipment for construction sites and haulage fleets should hold suppliers to verifiable mechanical and regulatory benchmarks. The following are the core specifications TrustWebbing manufactures to:

• Working Load Limit (WLL): Tie-down straps typically rated from 1,500 kg to 5,000 kg WLL per assembly; lifting slings offered from 1,000 kg up to 10,000 kg and beyond for heavy structural lifts.
• Breaking Strength (MBS): Minimum breaking strength engineered at 2× to 7× the rated WLL depending on product class; standard 50 mm polyester tie-down webbing achieves ≥ 5,000 daN system breaking strength.
• Safety Factor: Lashing straps built to a 2:1 ratio per EN 12195-2; lifting slings built to a 7:1 design factor per EN 1492-1/-2 and ASME B30.9 to accommodate dynamic shock loading during hoisting.
• Governing Standards: Compliant with EN 12195-2 (web lashing for cargo restraint), DOT / FMCSA 49 CFR §393 (North American tie-down regulations), and ASTM D3950 (webbing and hardware for strapping). Lifting products meet EN 1492, ASME B30.9, and AS 1353.
• Temperature Range: Polyester webbing rated for continuous service from −40 °C to +100 °C, with performance stability that resists UV degradation, mildew, and moisture common on outdoor infrastructure sites.
• Elongation: Polyester construction limits stretch to ≤ 7% at rated load, minimizing load movement versus higher-stretch nylon.
• Hardware Rating: Ratchet buckles, hooks, and end fittings proof-tested to match or exceed webbing WLL, with corrosion-resistant zinc or hot-dip galvanized finishes for a ≥ 240-hour salt-spray rating.
• Labeling & Traceability: Each assembly carries a permanently affixed, weatherproof identification tag stating WLL, MBS, length, standard, and batch/serial number for full site-audit traceability.

Specification	Tie-Down / Lashing	Lifting Sling
Typical WLL	**1,500–5,000 kg**	**1,000–10,000+ kg**
Safety Factor	**2:1**	**7:1**
Governing Standard	**EN 12195-2 / DOT**	**EN 1492 / ASME B30.9**
Material	100% Polyester	100% Polyester
Elongation @ WLL	**≤ 7%**	**≤ 3%**
Temp Range	**−40 °C to +100 °C**	**−40 °C to +100 °C**

Recommended Solutions

TrustWebbing supplies an integrated range spanning restraint, lifting, and connecting hardware so buyers can source a complete cargo-control system from one factory.

• Lifting Slings & Webbing: Our core Lifting Slings & Webbing category delivers flat and endless slings engineered for structural and modular construction lifts, with abrasion-resistant polyester webbing and reinforced eyes for repeated crane cycles.

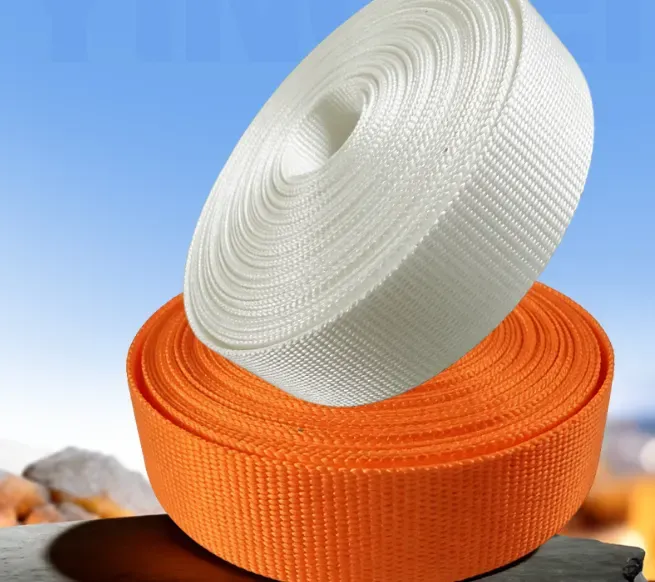

• Woven Polyester Lifting Sling: The Woven Polyester Lifting Sling provides high tensile strength with controlled elongation, ideal for lifting fabricated steel, precast elements, and packaged materials where load-surface protection matters.
• 2 Ton Lifting Sling - Heavy Duty Polyester Round Sling: The 2 Ton Lifting Sling - Heavy Duty Polyester Round Sling offers a fully enclosed, endless-loop design that distributes load evenly, protects the sling body from cuts, and suits choke, basket, and vertical hitch configurations at a 2,000 kg vertical WLL.
• Industrial Webbing & Hardware: From the Industrial Webbing & Hardware category, ratchet tie-down assemblies, lashing straps, and buckles secure loads to flatbeds and trailers in full compliance with EN 12195-2 and DOT restraint rules.

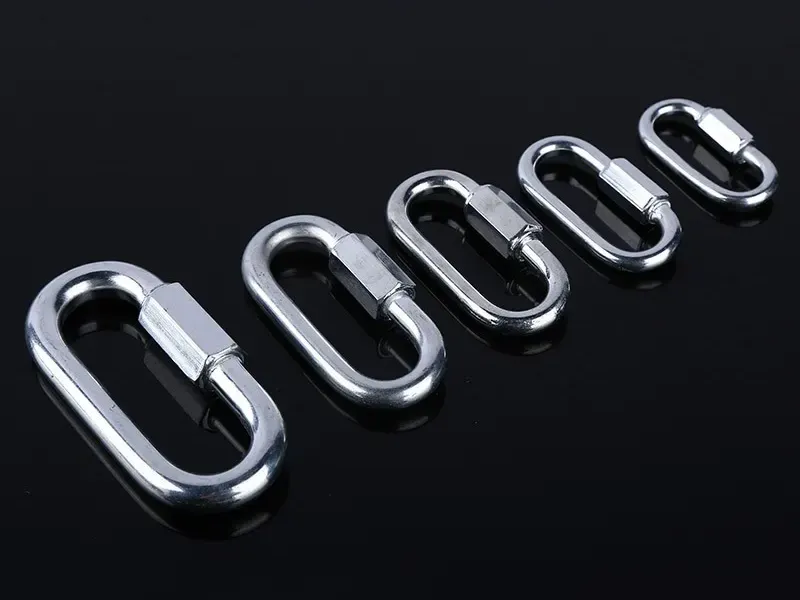

• Industrial Safety Carabiners: Industrial Safety Carabiners with rated gate-locking mechanisms provide fast, secure connection points between slings, anchor points, and hardware, adding a load-rated link to the rigging chain.

Where It's Used

Cargo control and lifting products from TrustWebbing are deployed across the full lifecycle of a construction and infrastructure project:

• Structural steel handling: Lifting and positioning beams, columns, and trusses with polyester slings that protect coated and galvanized surfaces from marring.
• Precast & modular lifting: Basket and choke hitches for precast concrete panels, culverts, and modular building sections using round slings rated to the element weight.
• Flatbed and trailer restraint: Ratchet lashing straps securing rebar bundles, pipe, formwork, and machinery for road transport in the Logistics & Transportation supply chain, meeting DOT and EN tie-down requirements.
• Equipment and plant relocation: Securing generators, compressors, and small plant during transfer between sites and staging areas.
• Material yard staging: Bundling and restraining stacked materials to prevent shift during forklift and crane handling within busy Construction & Infrastructure work zones.
• Rigging and connection points: Using load-rated carabiners and hardware to build safe, quick-release rigging assemblies for repetitive lift cycles.

Sourcing & Bulk Orders

TrustWebbing operates as a direct manufacturer, giving global wholesale and bulk buyers factory pricing, full specification control, and OEM/ODM flexibility for private-label programs.

• Minimum Order Quantity (MOQ): Standard MOQ from 500 pieces per specification; mixed-specification container orders accommodated for distributors and importers.
• Custom Lengths & Widths: Webbing produced in 25 mm, 35 mm, 50 mm, 75 mm, and 100 mm widths; sling and strap lengths cut to any dimension from 1 m to 20 m+ to match customer load plans.
• Custom WLL & Color: Ratings configured to buyer requirements, with color-coded webbing (per EN 1492-2 color codes—violet 1 t, green 2 t, yellow 3 t, grey 4 t, red 5 t) for instant on-site load identification.
• OEM / ODM & Branding: Custom-woven brand names, logos, printed tags, retail packaging, and barcoding available for private-label wholesale programs.
• Certifications: Products manufactured under ISO 9001 quality systems with CE, GS, and test certificates issued to EN 12195-2, EN 1492, and ASME B30.9; third-party lab reports (SGS/TÜV) available on request.
• Lead Time: Sample lead time 5–7 days; bulk production 15–30 days depending on order volume and customization scope.
• Export Capability: FOB, CIF, and EXW terms supported from major Chinese ports, with full export documentation, HS classification, and consolidated container loading for Logistics & Transportation partners and distributors worldwide.

Wholesale Parameter	Detail
MOQ	**500 pcs / spec**
Webbing Widths	**25 / 35 / 50 / 75 / 100 mm**
Length Range	**1 m – 20 m+**
Sample Lead Time	**5–7 days**
Bulk Lead Time	**15–30 days**
Quality System	**ISO 9001 / CE / GS**
Export Terms	**FOB / CIF / EXW**

By combining certified Lifting Slings & Webbing, compliant Industrial Webbing & Hardware, and load-rated connecting components, TrustWebbing delivers a single-source cargo-control solution built for the demands of the Construction & Infrastructure and Logistics & Transportation industries—engineered to documented standards, priced for bulk procurement, and configurable to any buyer's specification.
